Asus ZenFone Max Plus (M1) Specs

OS

Android 7.0 Nougat

Display

5.7-inch
2160 x 1080 px

Camera

16 MP Main
16 MP Selfie

Battery

4130 mAh

Storage

32GB

Hardware

MediaTek
3GB RAM

Description

Besides the large 5.7-inch full HD+ (1080 x 2160 pixels) display, the Asus ZenFone Max Plus (M1) packs a massive 4,130 mAh battery. The octa-core MediaTek 6750T processor is paired with either 3GB RAM and 32GB internal memory, or 4GB RAM and 64GB storage. The back side features a dual-camera setup (16MP+8MP), while in the front there's an 8-megapixel selfie camera.

This device is also known as Asus ZB570TL

User Score

Be the first to review this phone

Add Review

I want it 1 user

I have it 0 users

I had it 0 users

Popular Comparisons

The Asus ZenFone Max Plus (M1) is most commonly compared with these phones:

Specs Compare

Display
Size:	5.7-inch
Resolution:	2160 x 1080 px, 18:9 ratio, 424 PPI
Technology:	IPS LCD
Screen-to-body:	75.34 %
Features:	Ambient light sensor, Proximity sensor

Hardware
System chip:	MediaTek MT6750T (28 nm)
Processor:	Octa-core, 1500 MHz, ARM Cortex-A53, 64-bit
GPU:	Mali-T860 MP2
RAM:	3GB (LPDDR3)
Internal storage:	32GB
Storage expansion:	microSDXC up to 256 GB
OS:	Android (7.0 Nougat)
Device type:	Smartphone

Battery
Capacity:	4130 mAh
Type:	Li - Polymer, Not user replaceable
Charging:	Fast charging

Camera
Rear:	Dual camera
Main camera:	16 MP (PDAF)
Specifications:	Aperture size: F2.0 Focal length: 35 mm
Second camera:	8 MP (Ultra-wide)
Specifications:	Focal Length: 17 mm
Flash:	Dual LED
Video recording:	1920x1080 (Full HD) (30 fps)
Features:	Time-lapse video, Picture-taking during video recording, Video calling, Video sharing
Front:	16 MP (Wide Angle, HDR)

Design Size comparison
Dimensions:	6.01 x 2.87 x 0.35 inches (152.6 x 73 x 8.8 mm)
Weight:	5.64 oz (160.0 g)
Materials:	Back: Metal
Biometrics:	2D Face unlock, Fingerprint (touch)
Keys:	Right: Volume control, Lock/Unlock key
Colors:	Black, Gold, Silver

Cellular
4G (FDD):	Bands 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 12(700 a), 17(700 b), 28(700 APT)
3G:	Bands 5(850), 8(900), 4(1700/2100), 2(1900), 1(2100)
Data Speed:	LTE Cat 4 (150/50 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
Dual SIM:	Yes
SIM type:	Nano SIM

Multimedia
Headphones:	3.5mm jack
Speakers:	Earpiece, Loudspeaker
Features:	Album art cover, Background playback
Screen mirroring:	Wireless screen share
Radio:	FM
Additional microphone(s):	Noise cancellation

Connectivity & Features
Bluetooth:	4.0
Wi-Fi:	802.11 b, g, n Wi-Fi Direct, Hotspot
USB:	microUSB, USB 2.0
Features:	Mass storage device, OTG, Charging
Location:	GPS, A-GPS, Glonass
Sensors:	Accelerometer, Gyroscope, Compass
Other:	Tethering, Computer sync, OTA sync

Regulatory Approval
FCC approval:
Date approved:	Nov 10, 2018
FCC ID value:	MSQX018D
Measured SAR:
Head:	0.54 W/kg
Body:	1.11 W/kg
Simultaneous Transmission:	1.29 W/kg
Wireless Router:	1.20 W/kg

Despite our efforts to provide full and correct Asus ZenFone Max Plus (M1) specifications, there is always a possibility of admitting a mistake. If you see any wrong or incomplete data, please

LET US KNOW.

If you are interested in using our specs commercially, check out our Phone specs database licensing page.

Alternative variants

Asus ZenFone Max Plus (M1)

with 64 GB storage

Differences from the main variant:
RAM:	4GB
Internal storage:	64GB

News

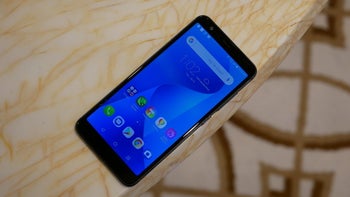

It took quite some time, but it looks that Asus is finally giving into the trends. You know, the kinds that we saw happen in the smartphone market throughout 2017. The Asus ZenFone Max Plus (M1) is the device that finally brings dual-cameras, a large...

Released at the end of 2017 in some European countries, the Asus ZenFone Max Plus (M1) is now almost ready to be launched in the US, too. Asus just announced that the smartphone should be available in North America (which should mean both the US, and...

Asus ZenFone Max Plus (M1) launches in the US in February: large battery, accessible price

Asus introduced its first ZenFone series smartphone to pack an 18:9 display, the ZenFone Max Plus (M1), last month, but it only made it available for purchase in Russia. Well, it looks like starting this month, the smartphone will be released in more...

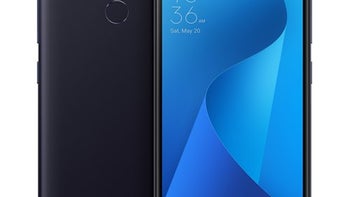

Asus ZenFone Max Plus (M1) with 18:9 display goes on sale in Europe, but it's a bit overpriced

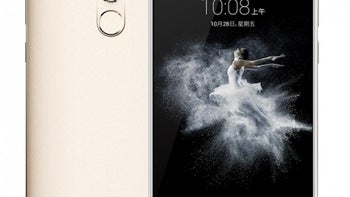

ZTE is one of the few Chinese companies which releases its flagships for the US market, and hopefully the newly-announced Axon 7 Max won't be any different in that regard, as the Axon 7 proved pretty popular here thanks to its stellar price-to-value ...
