Asus ZenFone AR Specs

6.5

PhoneArena Score

Asus ZenFone AR Review

User Score

Be the first to review this phone

Add Review

Released

Aug 03, 2017

Display

5.7-inch
2560 x 1440 px

Camera

23 MP Main
8 MP Selfie

Battery

3300 mAh

Storage

128GB

Hardware

Qualcomm Snapdragon 821
6GB RAM

OS

Android 7.0 Nougat
ASUS Zen UI

Description

The Asus Zenfone AR is one of the first phones that are Google Tango-enabled. In Zenfone AR the camera system features one of the latest Sony IMX 318 sensors with a 23MP resolution, in addition to a motion tracking and depth sensing cameras. The Asus Zenfone AR is a sleek phone that does not look like the tanky Tango devices of before. It features a 5.7" Quad HD (1440 x 2560 pixels) Super AMOLED display, with an impressive 79% screen-to-body ratio, which is a great fit for Daydream. Indeed, the phone is Daydream-ready as well. Under the hood, it runs on the Snapdragon 821, tweaked to deliver the specific performance required for Tango. On board is also 8GB of RAM.

This device is also known as Asus ZS571KL

Pros

High pixel density screen (512 PPI)

I want it 11 users

I have it 1 user

I had it 0 users

Popular Comparisons

The Asus ZenFone AR is most commonly compared with these phones:

Specs Compare

Display Benchmarks
Size:	5.7-inch
Resolution:	2560 x 1440 px, 512 PPI
Technology:	Super AMOLED
Screen-to-body:	73.61 %
Features:	Oleophobic coating, Scratch-resistant glass (Corning Gorilla Glass 4), Ambient light sensor, Proximity sensor

Hardware Benchmarks
System chip:	Qualcomm Snapdragon 821 MSM8996 Pro
Processor:	Quad-core, 2150 MHz, Kryo, 64-bit
GPU:	Adreno 530
RAM:	6GB (LPDDR4)
Internal storage:	128GB
Storage expansion:	microSDXC up to 2000 GB
OS:	Android (7.0 Nougat), ASUS Zen UI Screenshots
Device type:	Smartphone

Battery
Capacity:	3300 mAh
Type:	Li - Ion, Not user replaceable
Charging:	Qualcomm Quick Charge 3.0

Camera
Rear:	Single camera Camera samples
Main camera:	23 MP (OIS, Laser and PDAF)
Specifications:	Aperture size: F2.0 Focal length: 27 mm Sensor size: 1/2.6" Pixel size: 1 μm
Flash:	Dual LED
Video recording:	3840x2160 (4K UHD) (24 fps), 1920x1080 (Full HD) (30 fps), 1280x720 (HD) (30 fps)
Features:	Time-lapse video, Continuous autofocus, EIS, Video calling, Video sharing
Front:	8 MP (Wide Angle, Autofocus, Flash, HDR)

Design Size comparison
Dimensions:	6.25 x 3.06 x 0.35 inches (158.67 x 77.7 x 8.95 mm)
Weight:	6.00 oz (170.0 g)
Materials:	Frame: Metal
Biometrics:	Fingerprint (touch)
Keys:	Right: Volume control, Lock/Unlock key
Colors:	Black

Cellular
4G (FDD):	Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 12(700 a), 13(700 c), 20(800 DD), 29(700 d)
3G:	Bands 5(850), 8(900), 4(1700/2100), 2(1900), 1(2100)
Data Speed:	LTE-A Cat 11 (600/75 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
Dual SIM:	Shared with microSD
SIM type:	Nano SIM
HD Voice:	Yes
VoLTE:	Yes

Multimedia Benchmarks
Headphones:	3.5mm jack
Speakers:	Earpiece, Loudspeaker
Features:	Album art cover, Background playback
Screen mirroring:	DLNA, Wireless screen share
Additional microphone(s):	Noise cancellation

Connectivity & Features
Bluetooth:	4.2, EDR
Wi-Fi:	802.11 a, b, g, n, ac, dual-band MIMO, Wi-Fi Direct, Hotspot
USB:	Type-C (reversible), USB 2.0
Features:	Mass storage device, Video out, Charging
Location:	GPS, A-GPS, Glonass, BeiDou
Sensors:	Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer
Other:	NFC, Tethering, Computer sync, OTA sync

Availability
Officially announced:	Jan 04, 2017

Despite our efforts to provide full and correct Asus ZenFone AR specifications, there is always a possibility of admitting a mistake. If you see any wrong or incomplete data, please

LET US KNOW.

If you are interested in using our specs commercially, check out our Phone specs database licensing page.

Alternative variants

Asus ZenFone AR

International version

Differences from the main variant:
4G (FDD):	Bands 1(2100), 2(1900), 3(1800), 5(850), 7(2600), 8(900), 18(800 Lower), 19(800 Upper), 20(800 DD), 26(850+), 28(700 APT)
4G (TDD):	Bands 38(2600), 40(2300), 41(2600+)
3G:	Bands 5(850), 8(900), 3(1800), 2(1900), 1(2100)

Asus ZenFone AR

for Verizon Wireless

Differences from the main variant:
4G (FDD):	Bands 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 13(700 c), 20(800 DD)
3G:	Bands 5(850), 8(900), 2(1900), 1(2100)

Carrier Availability

Discontinued

Verizon

News

Asus ZenFone AR is kind of a unique device, but not necessarily in a good way. Even though it was beefed up with top-tier hardware, it remains an expensive smartphone unless you manage to score a deal.World's first smartphone with Tango and Daydream ...

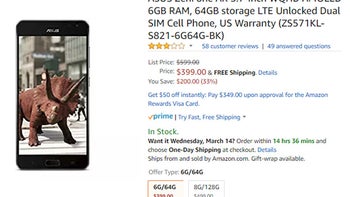

Deal: Asus ZenFone AR 6GB/8GB RAM on sale for $200 off on Amazon

The Asus ZenFone AR is one of the few smartphones that are part of Google's Project Tango. Launched on the market more than six months ago, the device is still priced at around $600 in the United States.However, Amazon is currently running a sale on ...

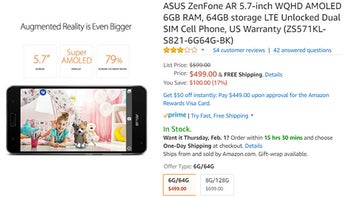

Deal: Asus ZenFone AR with 6GB RAM is $100 off at Amazon
